SP201E DMX512 Decoder

Connection Mode:Common Anode RGB LED Controller

Product name:SP201E DMX512 Decoder

Application:RGB Led Strip Lighting

Certificates:CE FCC ROHS

Workking Voltage:5-24V

Output signal:Constant Voltage PWM Signal

Function:Amplify Receiving Singnal

Color:Black

Model: SP901E

Collect

商品说明

SP201E Parameter

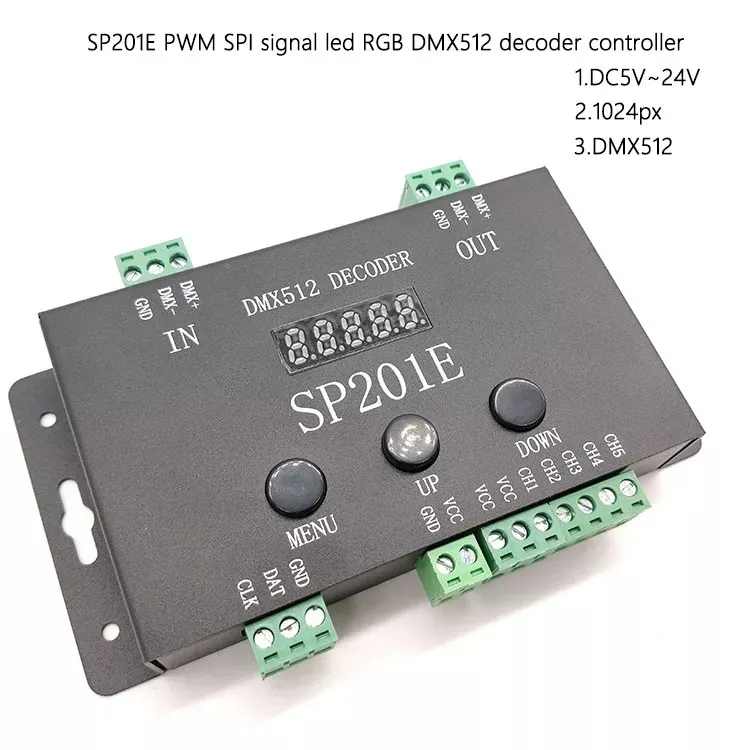

Name: SP201E DMX Decoder
Input voltage: DC5V~24V
Built-in Color modes: 99 patterns
Control pixels when no DMX signal input: 1024 Pixels

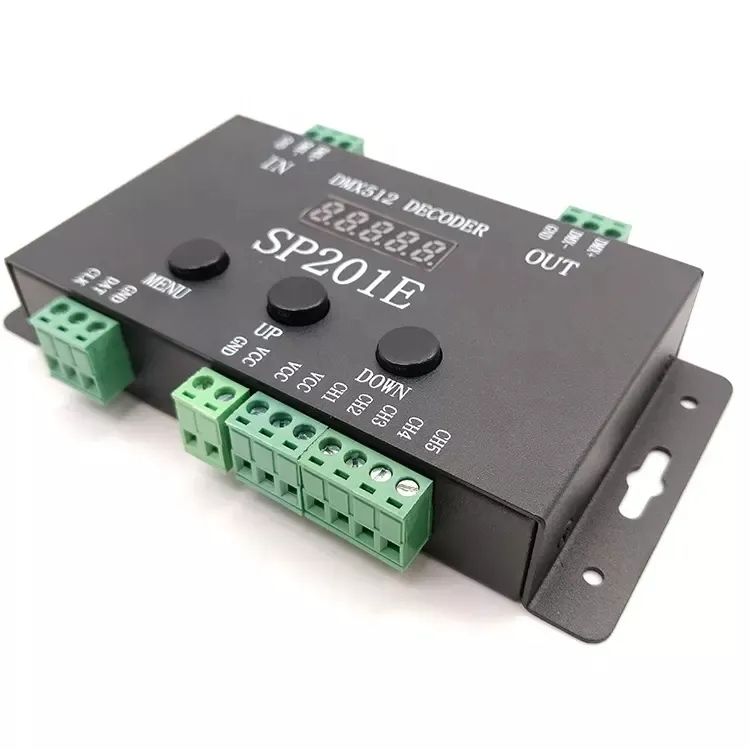

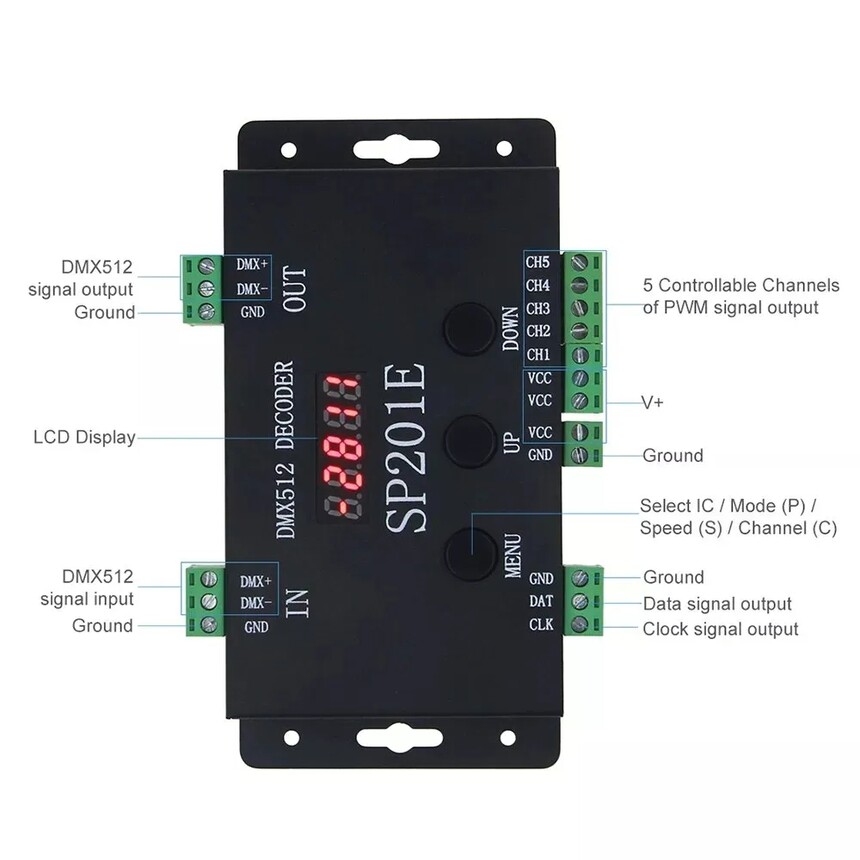

Functions of ports: Please refer to the user manual or product pictures.
Functions of buttons: Please refer to the user manual or product pictures.
Dimensions: 5.9 in x 3.7 in x 0.91 in (15 cm x 9.5 cm x 2.3 cm)
Weight: 300g

SP201E DMX Decoder Features
1. DC5V~24V wide range of working voltage;
2. IC chip/ Built-in modes/ Speed/ Decoding channels adjustable;
3. Automatic identification of DMX512 signal;

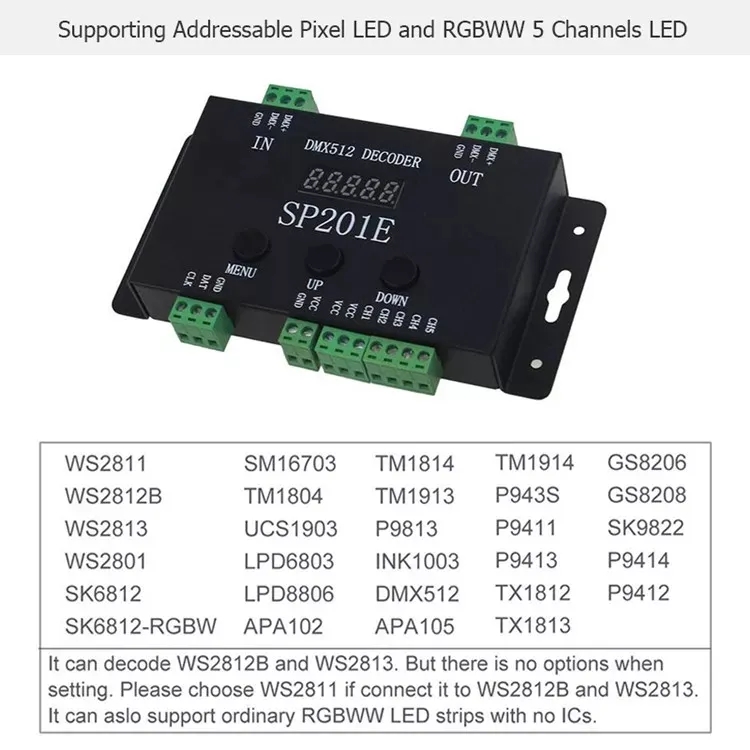

4. Supporting addressable pixel LED and RGBWW 5 channels LED;
5. Works in single or multiple synchronous cascade modes;

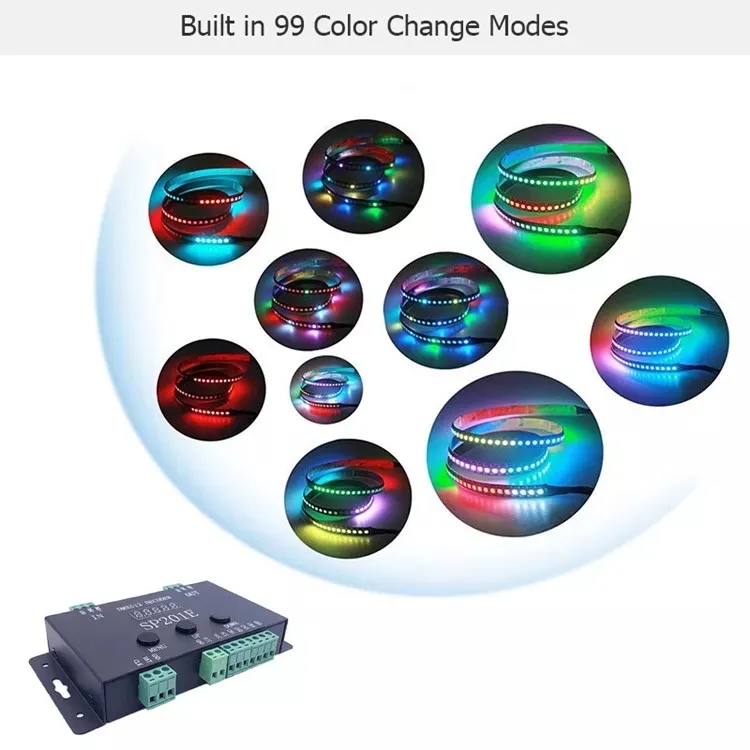

6. With 99 kinds of build-in patterns;
7. User setting saving.

WS2812B Panel Screen
The size:
8*8,64leds
16*16, 256leds
8*32, 256leds
1. Emitting color: pixel RGB ,IC WS2812
2. Work voltage:DC 5V
3. Power: 0.3W/pixel
4. waterproof level:Non-waterproof
5. Working mode: external controllerArduino compatible.
6. Connection:VCC: RED; GND:BLACK; DAT:BLUE
