Product Detail

4A 4Channels PWM Control Signal Digital Display DMX512 Decoder

Warranty(Year):2-Year

Lighting solutions service:Lighting and circuitry design

Product Weight（kg）:0.45

Place of Origin:Guangdong, China

Type:MANUAL SWITCH

Max. Load Power:192W

Product name:DMX 512 Decoder

Application:DMX Lighting Solution

Voltage:12-24V DC

Output Current:4A/CH

Output power::12V:<144W

Certificates:CE ROHS

Connection Mode:common anode

Working temperature::-20C ~ 60C

Color:Black

Case Material::metal

Model: DMX-3CH/4CH

Collect

商品说明

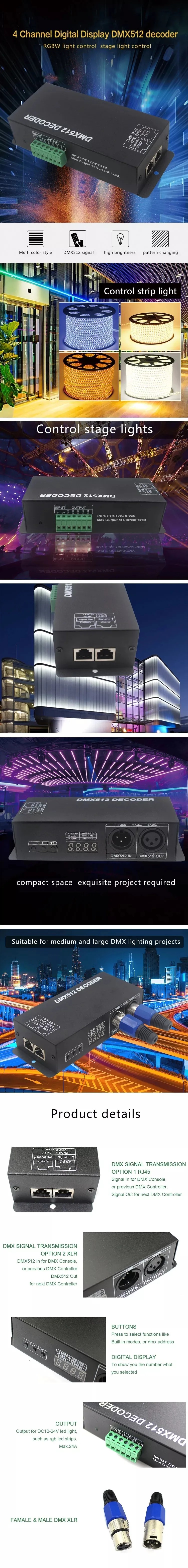

DMX512 DECODER

DMX decoder adopts advanced computer control chip to receive DMX-512 standard digital control signal widely used in the world and convert it into PWM controller signal to drive LED; It can be connected with DMX digital console, and can add decoder to continuously expand the output channel to achieve more dimming or various program change effects. When the decoder is not connected to the DMX console, the machine can be used as a synchronization controller to synchronously control multiple decoders and LED lights. In addition, the LED digital tube is used to display the address code, and the key setting code is used to increase or decrease the address. It has the characteristics of flexible and convenient operation and easy display.Performance Parameter● working temperature: - 20-60 ℃
● power supply voltage: 12V ~ 24V
● output current: rated current of each circuit: 4A
● output power: 4a, 12V: < 192W, 24V: < 384w
● controller size: l177 × W42 × H33mm
● packing box size: L185 × W50 × H40mm
● net weight: 350g
● gross weight: 408g
● channel: 4 channels
● DMX512 standard: DMX512 / 1990
