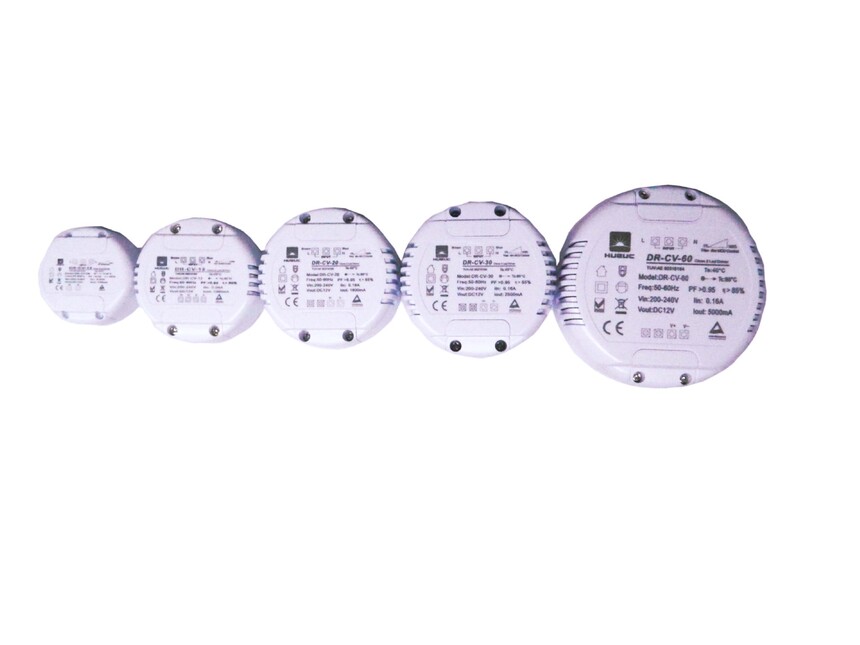

Round Shape Triac dimmable LED Driver

Round Triac Dimmable Led Driver Constant Voltage for Led Lighting

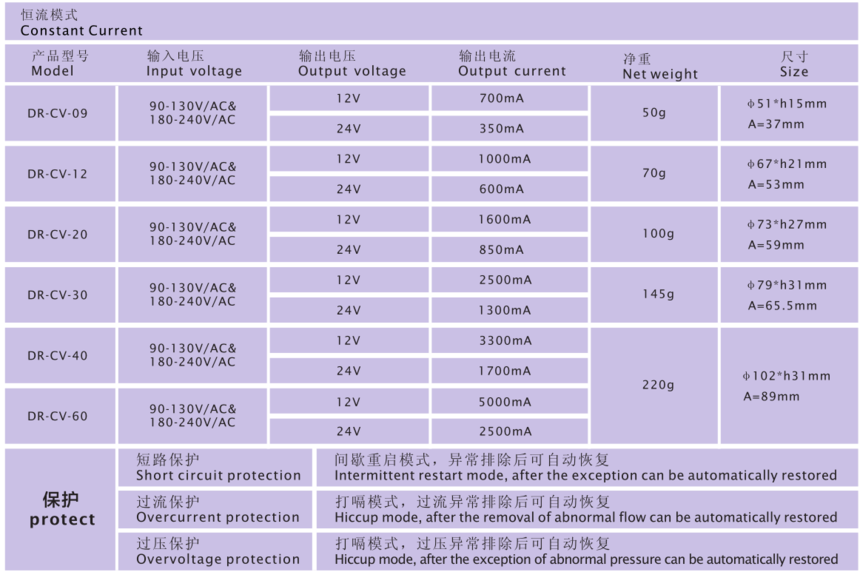

12V 12W 20W 30W 40W 60W 80W

24V 12W 20W 30W 40W 60W 80W

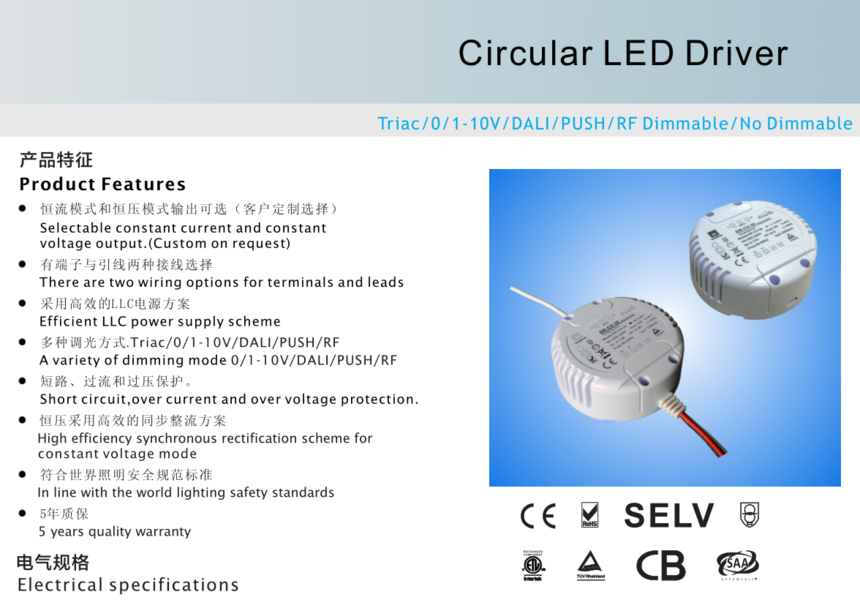

1). Selectable constant voltage /constant current output upon request.

2). Fully-isolated.

3). Short-circuit, over-current and over -voltage protection.

4). Fireproof environmental protection PC housing cover.

5). 5 years warranty.

6). Ruby capacitors.

7). Compatible with front and trailing dimming.

8). Highly energy saving.

9). CE/ RoHS/SAA /cETLus/TUV/3C certified.

10). Customized logo by laser printing on housing.

11). Dimming range 5%-100%.

12). PF>0.95 & Efficiency>86%.

13). No flickering or flashing.

14). Small quantity acceptable for your testing purpose.

15). Factory direct to ensure best price and 8-15 days' delivery.

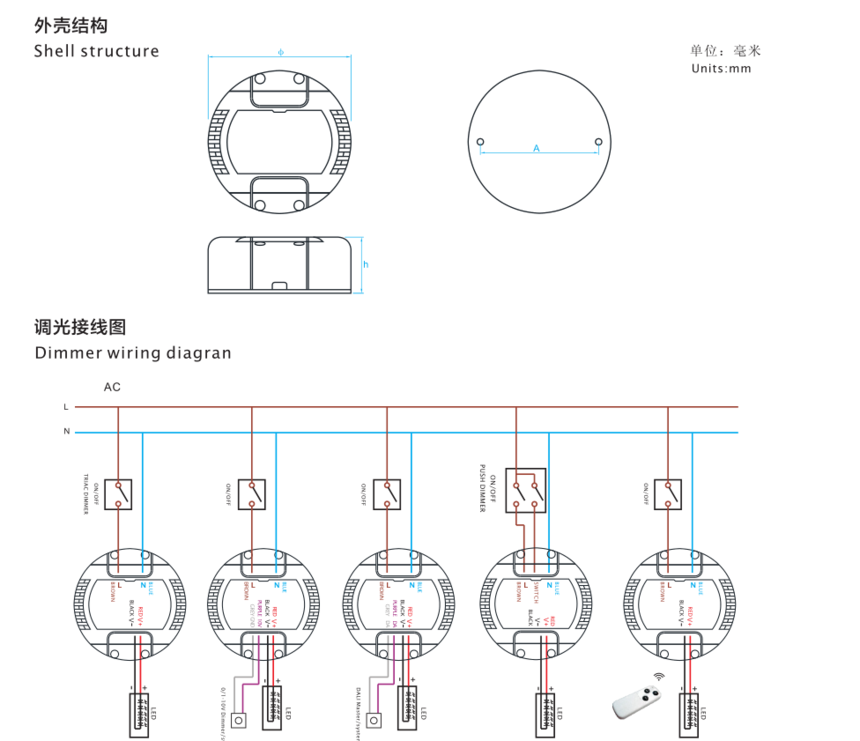

Class II constant voltage TRIAC Dimmable LED Driver .

AC input 100-130 volt, DC output 12 volt, 20W-80W option available, 50/60Hz. Made of flame retardant materials with a high degree of fire resistance capability. Easy to install and wire up. No humming, light flicker or switch on delay from the transformer. Low power design, static power consumption, low calorific value.

Note: For maximum dimming effectiveness and performance, please load the driver to at least 70% of its capacity.
